Definition
A thermal expansion tank is a small pressurized vessel connected to a plumbing system to accommodate the increase in water volume that occurs when water is heated. It contains a flexible diaphragm or bladder separating water from a compressed air chamber.
Explanation
When water is heated, it expands. In an open plumbing system, the expanding water may move backward toward the public water supply. In a closed system, a check valve, backflow preventer, or certain pressure-reducing valves can prevent that movement.
The expansion tank provides room for the additional water volume. As expanding water enters the tank, it compresses the air on the opposite side of the diaphragm, helping limit pressure increases throughout the plumbing system.
These tanks are commonly installed on the cold-water supply piping near tank-style water heaters. Their size, air precharge, location, and physical support should follow the manufacturer’s instructions.
Why It Matters
A properly installed and operating expansion tank helps protect water heaters, plumbing connections, and fixtures from excessive pressure caused by thermal expansion.
However, the presence of an expansion tank doesn’t establish that it is necessary or functioning correctly. Its internal air charge and operating condition cannot be verified by visual examination alone.

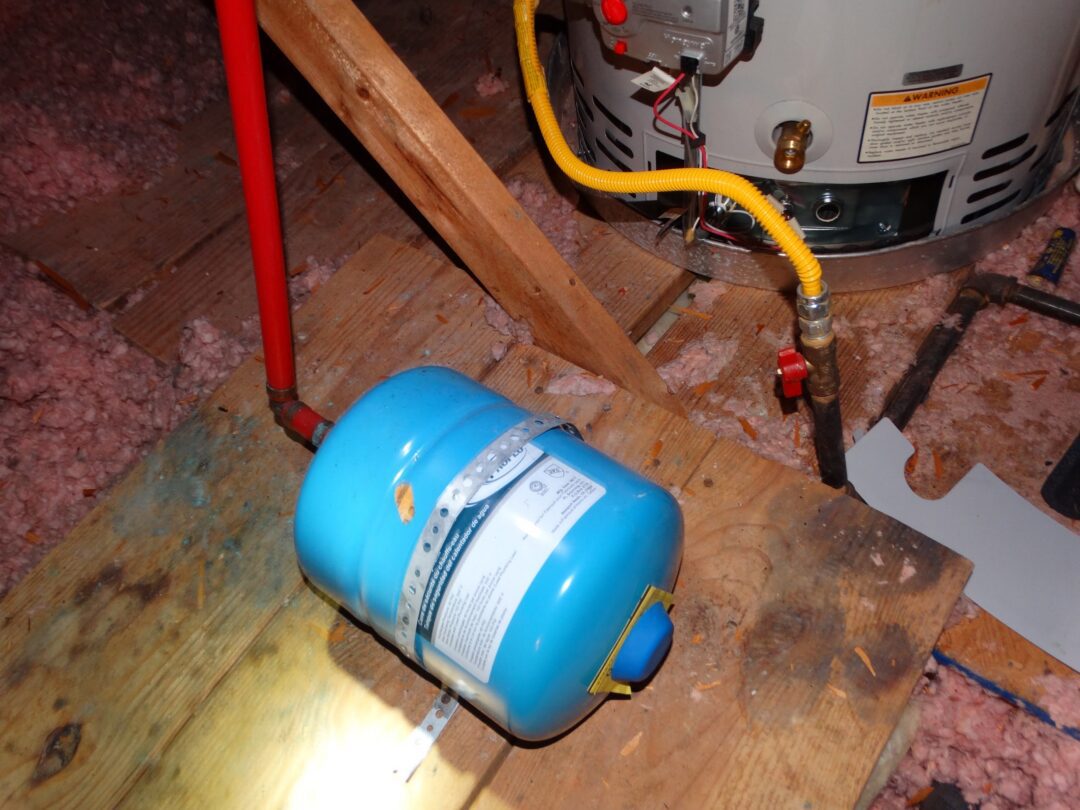

Homeowners should also consider the tank’s location, particularly when installed in an attic or above finished living spaces where leakage could cause property damage.
Example Usage
The water heater is equipped with a thermal expansion tank connected to the cold-water supply piping. The tank is intended to accommodate the increased water volume created during water heating. Its internal air charge and operating condition were not verified during this visual inspection.
